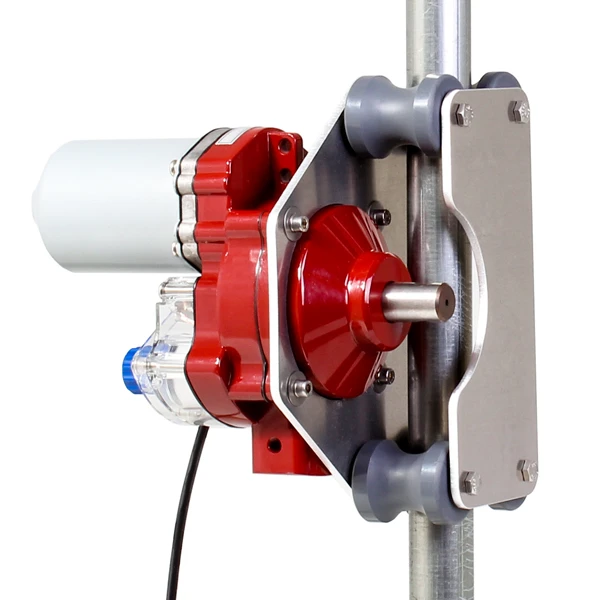

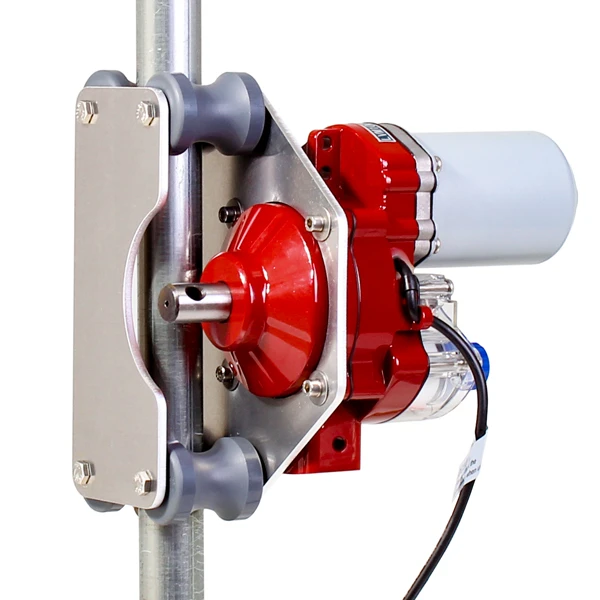

Auto Roll-up Side Motors - 100 nm Low Voltage Motors + 1.315" OD Adapter
$440.00
Current stock:
0
**The LVM100 Greenhouse Curtain Motor is designed to lift up to a 1750 sq. ft. single bar curtain or up to a 875 sq. ft. double bar curtain (square footage measured Length x Width)**
Our LVM100 Greenhouse Curtain Motors are ideal for longer structures, or structures needing to lift heavier material. They will run most curtains, blackout systems, and roof vents. Equipped with a complete guide wheel set, it will provide the necessary torque required to drive your curtains and vents.
You can fully automate your system by using this motor with our VCU224, Aegis Tech, or Aegis Tech + environmental controllers, or integrate into your existing system with one of our interface boxes.
Motor Specifications: 24 VDC, 100 NM, 4.2A, 100 W, 3 RPM, 40 Rev, 0.78″ (20mm) OD output shaft
Features
- Easy access limit switches (directional limits)
- Interchangeable guide wheel assembly to change Left or Right output of motor
- Compact, quiet, and light weight
- Innovative low-bind guide wheels for longer motor life
- Innovative roll bar adapter system for multiple roll bar adapters
- U.S. based tech support & repair options from the manufacturer at 1-877-546-2257
- 4 Year Limited Warranty for a lower total cost of ownership
- When used with AegisTEC controllers or separate approved controller
Shipping
- This item ships in 3-5 business days
- Ships via UPS Ground
GENERATE A SHIPPING QUOTE
Follow these steps to get a shipping quote:
1. Add the items you want into your cart/bag
2. Click on the shopping cart at the top right of your screen
3. Select "Checkout"
4. Enter full delivery details including phone number
5. Shipping rate will automatically be generated once delivery details are entered
Select number of units or order over the phone at: (833) 886-6351 ext. 2
- Height:
- 12.00
- Width:
- 18.00
- Depth:
- 10.00
