Caterpillar Tunnel - 16 ft. wide x 100 ft. long

(833) 886-6351

( 1 Review )

Current stock: 0

16 ft. Wide x 100 ft. Long TVH Caterpillar Tunnels

Call (833) 886-6351 ext. 1 for pricing

Experience a cost effective means to protect your crops with a Tunnel Vision Hoops LLC Caterpillar Tunnel. Each standard DIY Caterpillar Tunnel comes with all materials necessary to complete the installation of your structure, as well as easy to follow assembly instructions. Two people can install the structure in just a couple of hours.

Spec List for the 16 ft. wide x 100 ft. long CAT Tunnel

  • Dimensions: 8 ft. tall x 16 ft. wide x 100 ft. long
  • Hoops comprised of 1.315" OD Galvanized Steel Tube, 16 Gauge
  • Anchors: 5/8" Diameter Rebar OR 1.66" OD Ground Posts
  • Includes 4 Year 6 Mil Clear Greenhouse Plastic

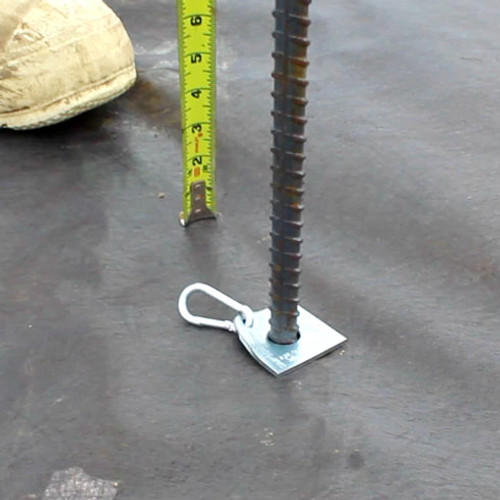

  • Galvanized Steel Base Plates included for Beneath the Hoops (used to run anti-billow rope off of)

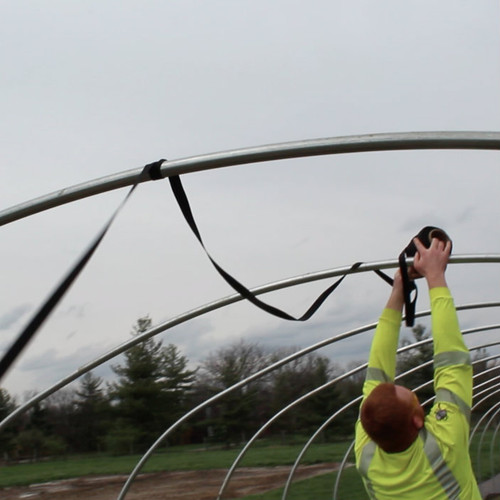

  • 3/16" Anti-billow Rope and Rope Attachment Carabiners for Every Hoop
  • 5 ft. T-Posts Included as a Standard Item

Add-On Options

Ask about our add-on components designed to provide a more rigid structure that can help protect against inclement weather:
  • Center ridge-purlin comprised of 1.315" OD 16 gauge Galvanized Steel Tube
  • Corner Braces comprised of 1.315" OD 16 gauge Galvanized Steel Tube
  • The above add-ons come with all required connection hardware


  • Call 833-886-6351, or email for a Shipping Quote

How Caterpillar Tunnels Ship

  • Caterpillar Tunnels ship via LTL Freight from our headquarters in Northeast Ohio

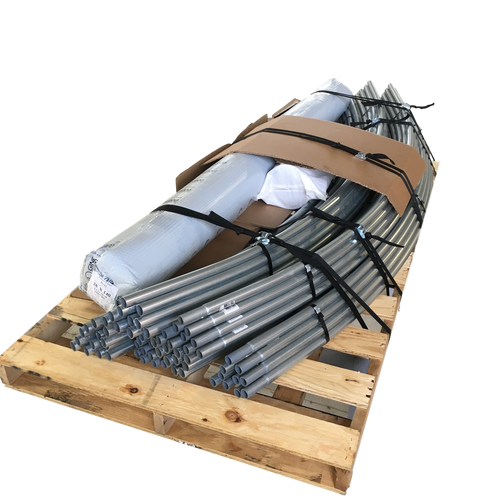

  • Ship via 44" x 120" Pallets; items on pallet are bundled for easy breakdown
  • Weight of a 16 ft. x 100 ft. Caterpillar Tunnel is 775 lb when on a pallet
  • Lift gate services are not available due to pallet length
  • Please include your phone number with all orders so we can provide it to the freight company

Lead Times

  • We often have a number in-stock with short shipping lead times (call 833-886-6351 to check what is on the floor)
  • Expect approximately 15 business days from order until the date we ship if we do not have any in-stock at time of order
  • All orders are manufactured in the order in which they are received
